Actuator

Electric Actuator

Ball Valve - SH
  • Modal: J3
  • Multi-voltage with auto-voltage sensing: 85 ~ 240V AC or DC
  • Operating time (0-90° no load) 35 seconds
  • Maximum break torque 94 Nm / 827 lb.ins
  • Maximum operating torque (run/ reseat) 85 Nm / 752 lb.ins
  • Duty rating: 75%
  • IP Rating (IEC 60529): IP67
  • Mounting: ISO:5211 x DIN 3337
  • Electrical connecting plugs
  • Motor switches DIN 43650/ ISO4400 & C192
  • Made in the EU
  • Manufacturer: J+J Valve Actuator Specialists

Advantages

  • Multi-voltage with auto-voltage sensing: 'L' 12 - 24V or DC, 'H' 110 - 240v or DC
  • LED status light to indicate operational status of actuator
  • Electronic over-torque protection against valve jams
  • Thermostatic anti-condensation heater
  • Manual override for emergency hand operation
  • 2 Volt free end of travel confirmation switches
  • ISO5211 multi-flange mounting with double square drive
  • All external electrical connections via supplied DIN plugs
  • CE marked
  • ISO 9000 manufacturer

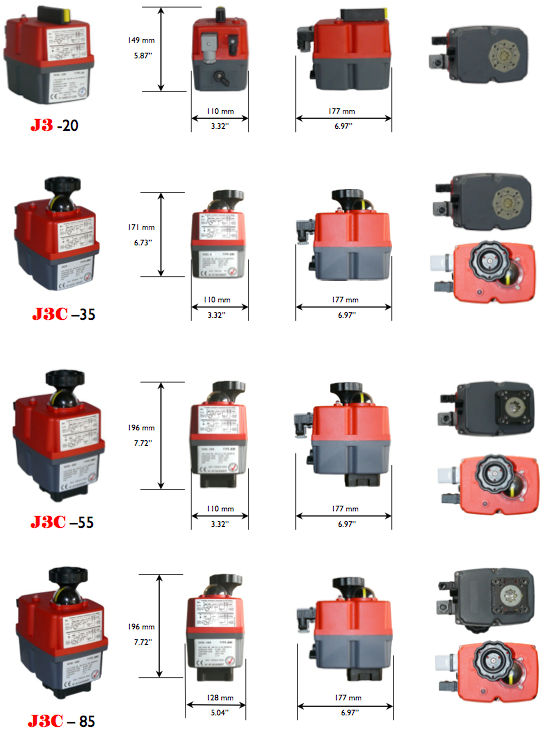

Modal & Dimension

J3C Electric Actuators

Applications

  • Oil
  • Chemical processes
  • Electronics
  • Gold
  • Papermaking
  • Processed foods and beverages
  • Pharmaceutical operations
  • Industrial plating
  • Seawater treatments
  • Hot spring water distribution
