Actuator

Ball Actuator Valve

Ball Valve - SH
  • Highly visible LED light gives continuous actuator status indication.
  • Multi-voltage capable with auto- voltage sensing:
  • Torque output: range: 25~95Nm Break 20~80Nm Reseat
  • Electronic torque limiter Protects against valve jams
  • Anti-condensation heater
  • All connections via external DIN plugs ~ no need to remove cover to connect
  • CE marked
  • Traceable sequential serial num- bering system
  • Manufacturer: JJ Automation

Advantages

  • J+J Electric actuators are weatherproof to IP65. They are fully suitable for outdoor use, protected against water ingress to IP65 and against condensation with an internal anti-condensation heater as standard.

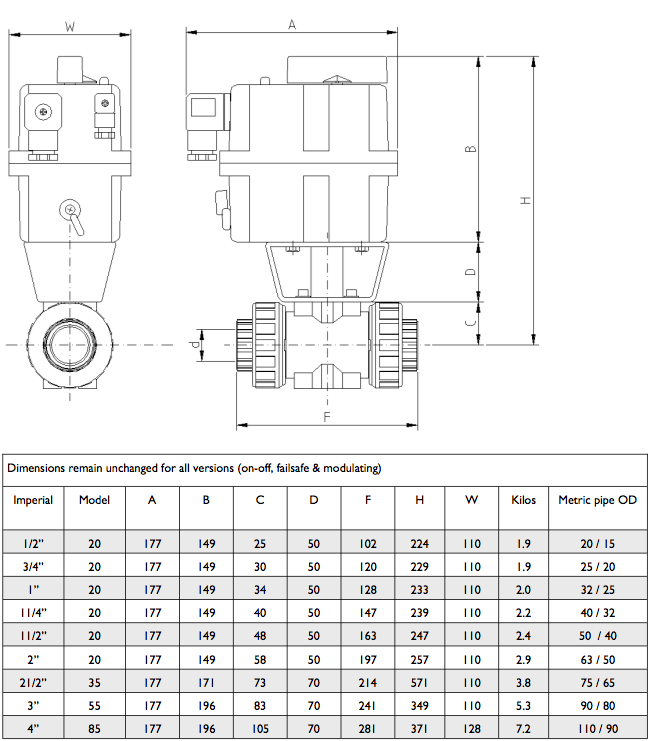

Dimension

Ball Actuator Valve

Applications

  • Water, oil and many corrosive medias, subject to compatibility with wetted parts in contact with media. Actuators sized on a maximum differential pressure of 10 bar wet service, if the intended duty is above this differential, or dry (air or gas) call to check actuator sizing as a larger output actuator may be required.
