PVC Fitting

One-Piece Flange SLIP

Ball Valve - SH
  • Standard: ANSI
  • Type: SLIP
  • Material: UPVC, CPVC
  • Size: 1/2" x 24"
  • Operating temperature: 0 - 55ºC
  • Body colour: Gray
  • Manufacturer: Shie-Yu +DFP+


  • The plastic system pipeline design and installation must be comply with the built standards and specification, must re-check the application subltities before installation.
  • Jointing-solvent cementing: Choose the right primer and cement and use the proper applicator and according to the manufacturer's instructions.
  • Jointing-Threaded Connections: Use the quality joint compounds and or teflon tape sealing. Some sealing compounds contain chemicals to cause the stress cracking. The threaded connections only take one or two turns. Don't do the over threading.

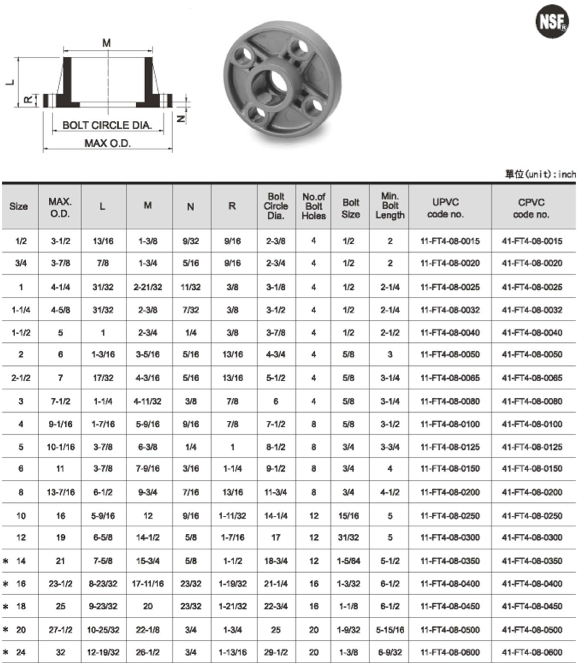

One-piece flange SLIP Specification


  • Oil
  • Chemical processes
  • Electronics
  • Gold
  • Papermaking
  • Processed foods and beverages
  • Pharmaceutical operations
  • Industrial plating
  • Seawater treatments
  • Hot spring water distribution
